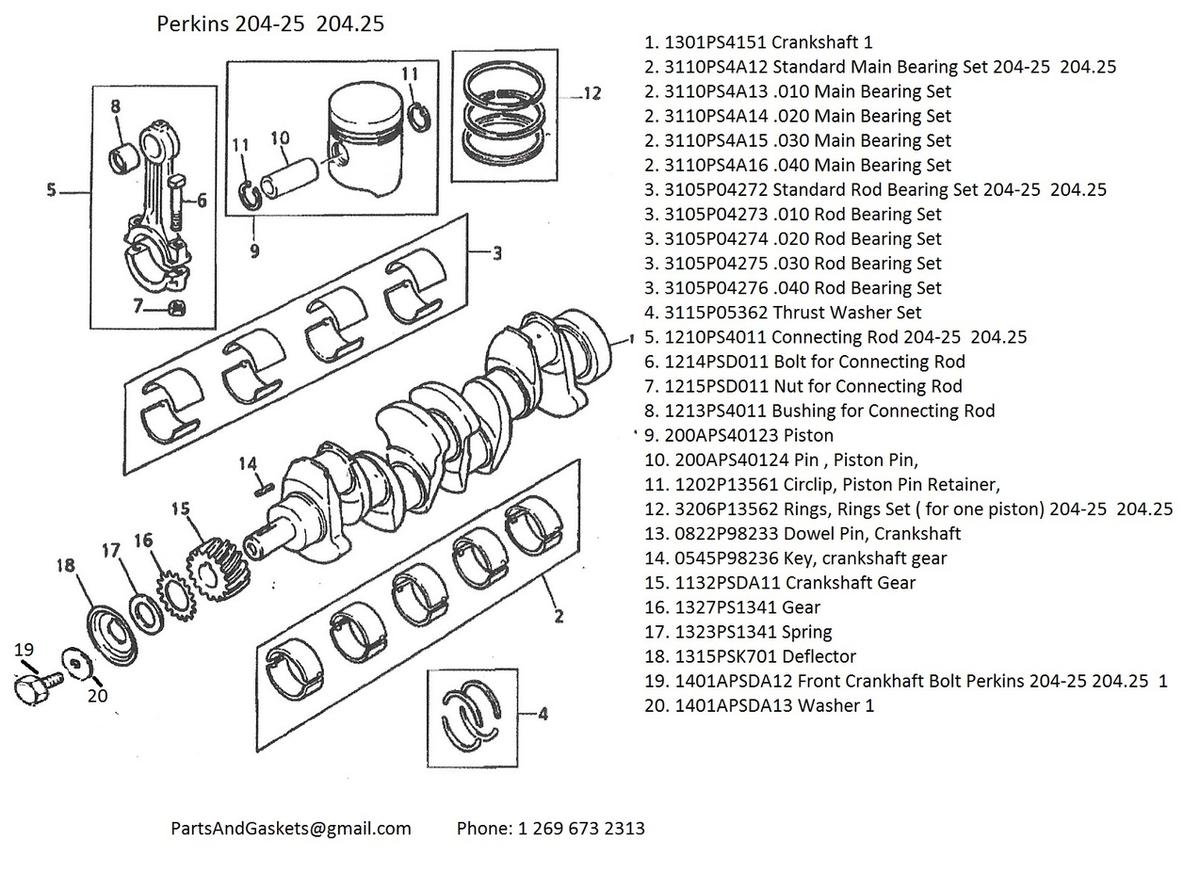

Perkins 204-25 204.25 Gaskets And Parts Perkins 204-25 204.25 Pistons, Piston Rings, Main Bearings, Rod Bearings, Thrust Washers, Connecting Rod, Front Crankshaft Bolt ,

1. 1301PS4151 Crankshaft 1
2. 3110PS4A12 Standard Main Bearing Set 204-25  204.25
2. 3110PS4A13 .010 Main Bearing Set
2. 3110PS4A14 .020 Main Bearing Set
2. 3110PS4A15 .030 Main Bearing Set
2. 3110PS4A16 .040 Main Bearing Set
3. 3105P04272 Standard Rod Bearing Set 204-25  204.25
3. 3105P04273 .010 Rod Bearing Set
3. 3105P04274 .020 Rod Bearing Set
3. 3105P04275 .030 Rod Bearing Set
3. 3105P04276 .040 Rod Bearing Set
4. 3115P05362 Thrust Washer Set
5. 1210PS4011 Connecting Rod 204-25  204.25
6. 1214PSD011 Bolt for Connecting Rod
7. 1215PSD011 Nut for Connecting Rod
8. 1213PS4011 Bushing for Connecting Rod
9. 200APS40123 Piston
10. 200APS40124 Pin , Piston Pin,
11. 1202P13561 Circlip, Piston Pin Retainer,
12. 3206P13562 Rings, Rings Set ( for one piston) 204-25  204.25
13. 0822P98233 Dowel Pin, Crankshaft
14. 0545P98236 Key, crankshaft gear
15. 1132PSDA11 Crankshaft Gear
16. 1327PS1341 Gear
17. 1323PS1341 Spring
18. 1315PSK701 Deflector

19. 1401APSDA12 Front Crankhaft Bolt Perkins 204-25 204.25  1
20. 1401APSDA13 Washer 1
