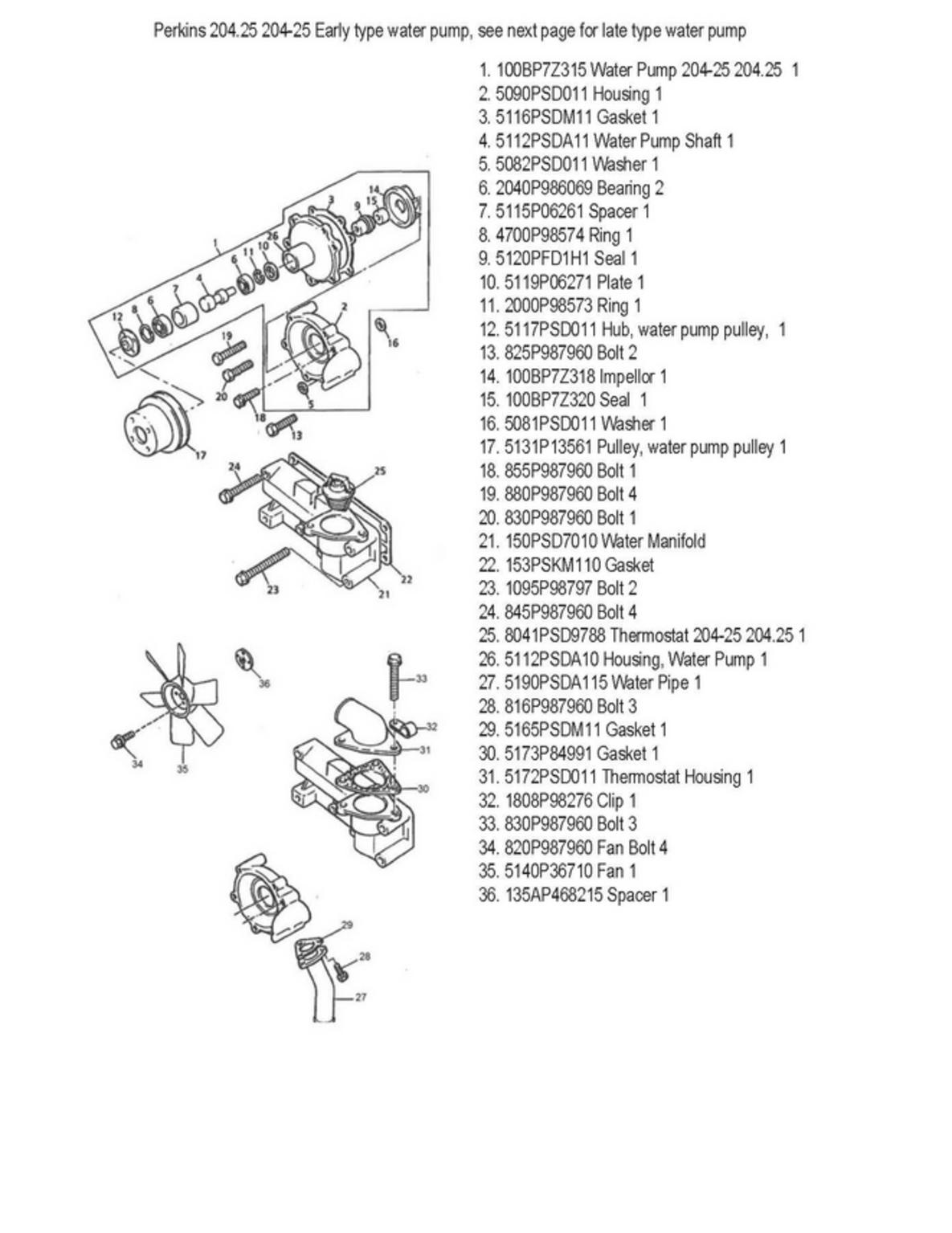

1. 100BP7Z315 Water Pump Early Type 204-25 204.25 ( for late type see next page )
2. 5090PSD011 Housing 1
3. 5116PSDM11 Gasket 1
4. 5112PSDA11 Water Pump Shaft 1
5. 5082PSD011 Washer 1
6. 2040P986069 Bearing 2
7. 5115P06261 Spacer 1
8. 4700P98574 Ring 1
9. 5120PFD1H1 Seal 1
10. 5119P06271 Plate 1
11. 2000P98573 Ring 1
12. 5117PSD011 Hub, water pump pulley, 1
13. 825P987960 Bolt 2
14. 100BP7Z318 Impellor 1
15. 100BP7Z320 Seal 1
16. 5081PSD011 Washer 1
17. 5131P13561 Pulley, water pump pulley 1
18. 855P987960 Bolt 1
19. 880P987960 Bolt 4
20. 830P987960 Bolt 1
21. 150PSD7010 Water Manifold
22. 153PSKM110 Gasket
23. 1095P98797 Bolt 2
24. 845P987960 Bolt 4
25. 8041PSD9788 Thermostat 204-25 204.25 1
26. 5112PSDA10 Housing, Water Pump 1
27. 5190PSDA115 Water Pipe 1
28. 816P987960 Bolt 3
29. 5165PSDM11 Gasket 1
30. 5173P84991 Gasket 1
31. 5172PSD011 Thermostat Housing 1
32. 1808P98276 Clip 1
33. 830P987960 Bolt 3
34. 820P987960 Fan Bolt 4
35. 5140P36710 Fan 1
36. 135AP468215 Spacer 1
Heavy Equipment Restoration Parts LLC
4730 118th Ave
Fennville Michigan 49408 USA
Phone: 269 673 1638
email: EngineParts@HeavyEquipmentRestorationParts.com
alternate email: EngineParts2@gmail.com
Website: www.HeavyEquipmentRestorationParts.com
Perkins 204.25 Engine Parts and Perkins 204.30 Engine Parts
Perkins 204-25 204.25 Water Pump Parts, Thermostat, Water Manifold, Thermostat Housing, Water Pump Pulley, Fan, Bolts, Gaskets and Seals,
