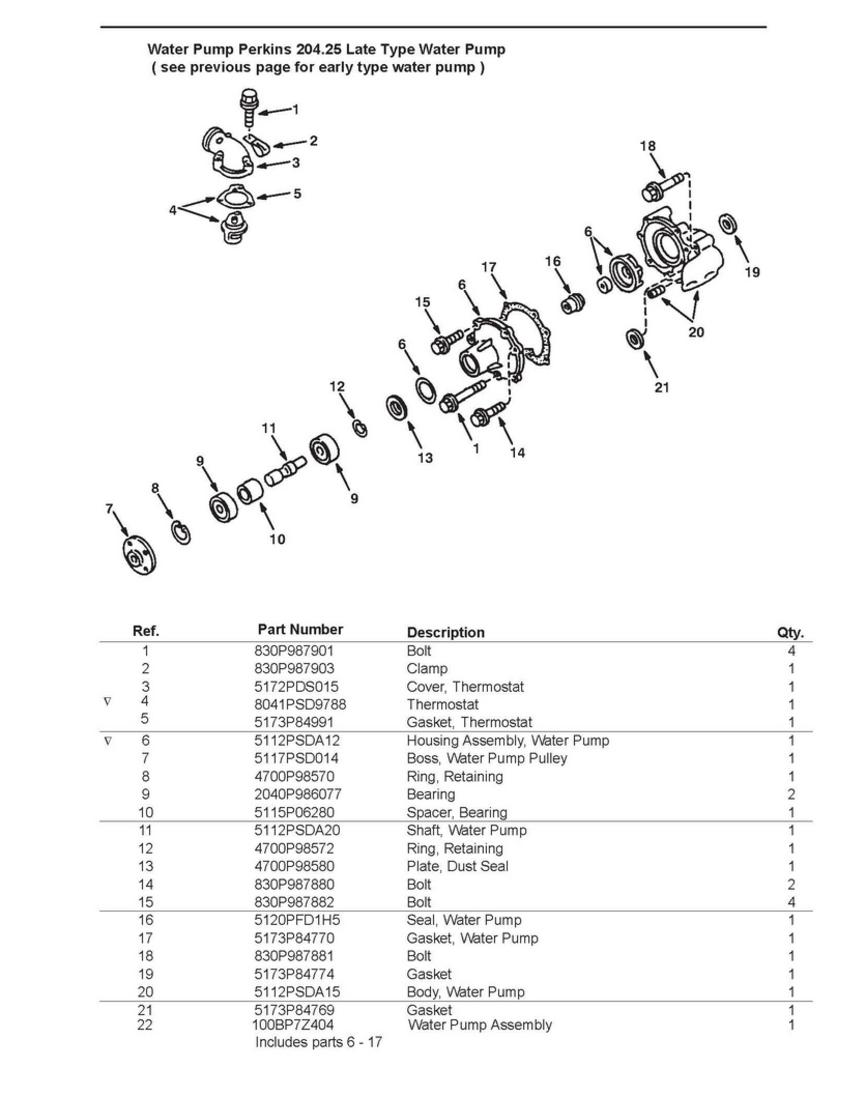

Perkins 204-25 204.25 Water Pump Late Type, Thermostat, Water Manifold, Thermostat Housing, Water Pump Pulley, Fan, Bolts, Gaskets and Seals,

1. 830P987901 Bolt (4)

2. 830P987903 Clamp (1)

3. 5172PDS012 Thermostat Cover (1)

4. 8041PSD9788 Thermostat (1)

5. 5173P84991 Thermostat Gasket (1)

6. 5112PSDA12  Housing Assembly, Water Pump (1)

7. 5117PSD014 Boss, Water Pump Pulley (1)

8. 4700P98570 Ring, retaining (1)

9. 2040P986077 Water Pump Bearing (2)

10. 5115P06280  Spacer (1)

11. 5112PSDA20 Shaft, Water Pump Shaft (1)

12. 4700P98572 Ring, retaining (1)

13. 4700P98580 Plate, dust seals (1)

14. 830P987880 Bolt (2)

15. 830P987882 Bolt (4)

16. 5120PFD1H5 Water Pump Seal (1)

17. 5173P84770 Water Pump Gasket (1)

18. 830P987881 Bolt (1)

19. 5173P84774 Gasket (1)

20. 5112PSDA15 Body, water pump (1)

21. 5173P84769 Gasket, (1)

22. 100BP7Z404 Water Pump Assembly ( Includes parts 6 - 17 )
